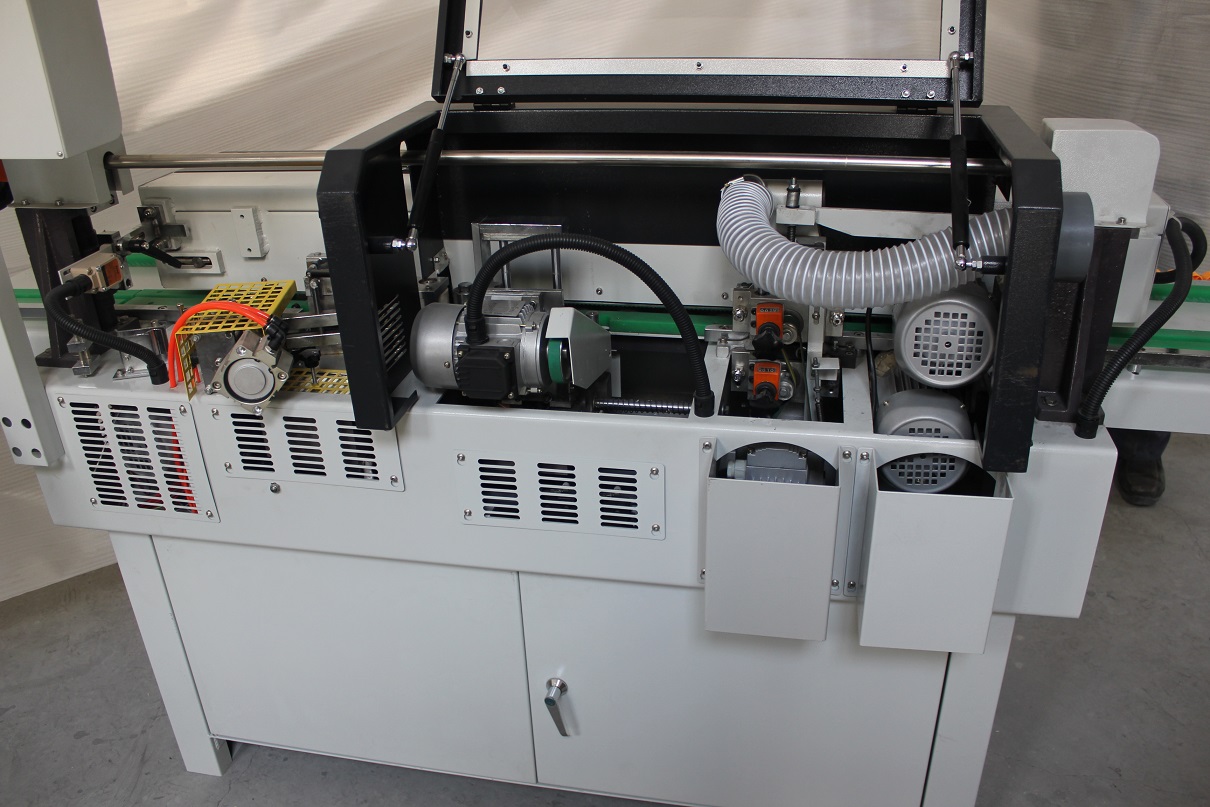

With two LEAD SCREWS lift system , and with stable and precise feeding performance.

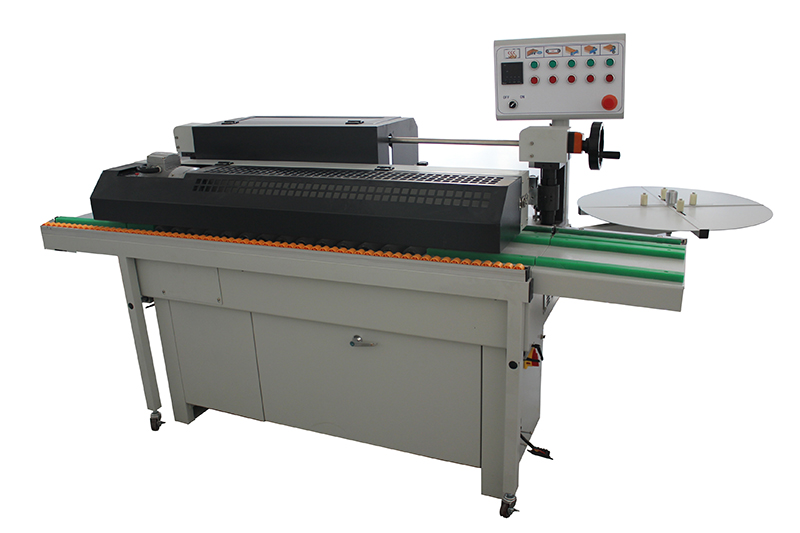

CLASSIC 410 Panel length |
Min.280mm (PVC) |
Panel width | Min.90mm |
Panel theickness | 10~45mm |
Edge width | 12~48mm |
Edge thickness | 0.4~3mm |
Feedingspeed | 6.4m/min |
Total power consumption | 2.86kW |
Required air pressure | 0.7Mpa |
Overall dimensions | 2320×800×1070mm |
Net.weight | 480kg |
