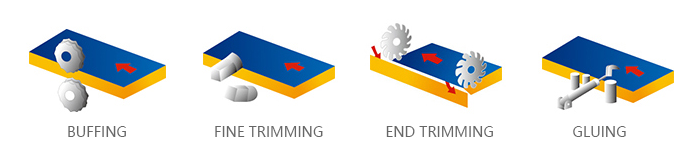

Function: Gluing; Two Motors End Trimming; high-speed motor Fine Trimming;Buffing .
Model | CLASSIC610 | |
Min.panel length | mm | 180 |
Min.panel width | mm | 80 |
Panel thickness | mm | 12~45 |
Edge thickness | mm | 0.4~3 |
Feeding speed | m/min | 10 |
Power motor | kw | 2.7 |
Heating power | kw | 1.35 |
Air pressure | mpa | 0.6 |
Net weight | kgs | 520 |
Overall dimensions | mm | 2300*1050*1300 |
Wooden case dimensions | mm | 1980*580*1250 |
