MODEL | PLANER623 | PLANER523 | PLANER423 |
Max working width mm | 230 | 230 | 230 |
Min working width mm | 25 | 25 | 25 |
Max working height mm | 160 | 160 | 160 |
Min working height mm | 8 | 8 | 10 |
Spindle quantity pcs | 6 | 5 | 4 |
Spindle speed r/min | 6000 | 6000 | 6000 |
Feeding speed m/min | 5~38 | 5~38 | 5~38 |
Spindle diameter mm | Φ40 | Φ40 | Φ40 |
Knive diameter mm | |||
first down knive | 7.5kw Φ125 | Φ125 | Φ125 |
Right vertical knive | 7.5kw Φ125-Φ180 | 7.5kw Φ125-Φ180 | 7.5kw Φ125-Φ180 |
Left vertical knive | 7.5kw Φ125-Φ180 | 7.5kw Φ125-Φ180 | 7.5kw Φ125-Φ180 |
first upper knive | 11kw Φ125-Φ180 | 11kw Φ125-Φ180 | 11kw Φ125-Φ180 |
Second upper knive | 7.5kw Φ125-Φ180 | / | / |
Second down knive | 7.5kw Φ125-Φ180 | 7.5kw Φ125-Φ180 | / |
Motor total power KW | 53.25KWP | 45.75KW | 38.25KW |

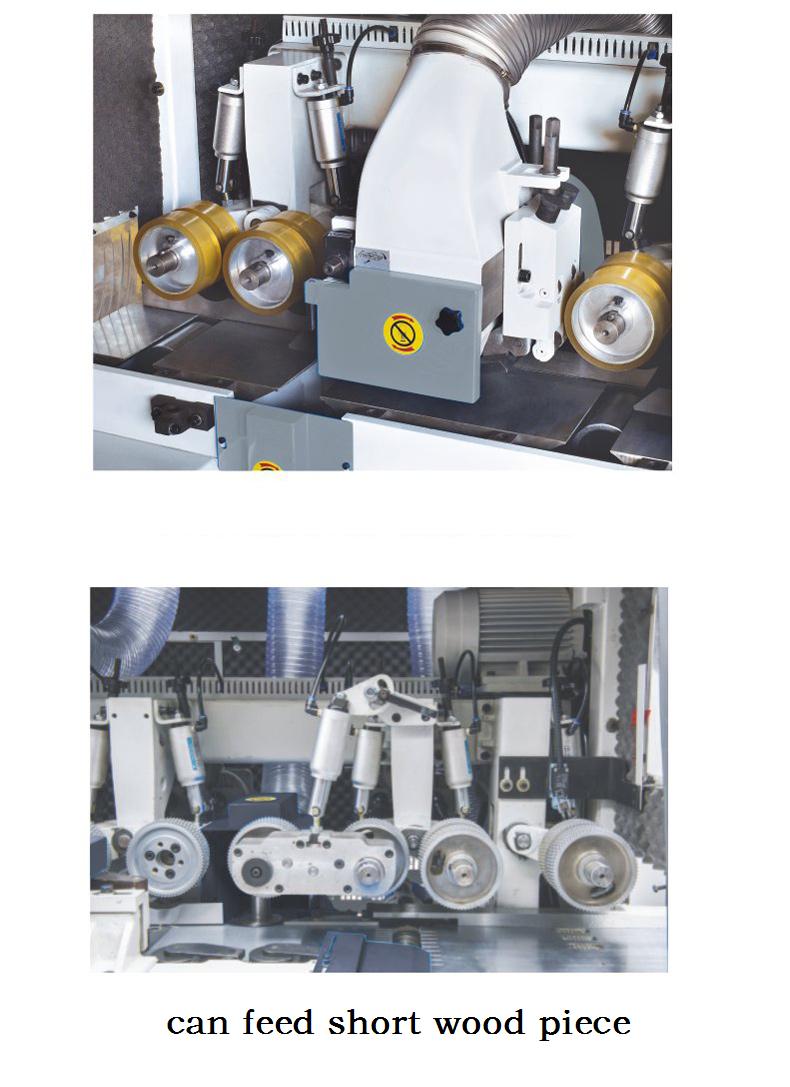

Press roller size mm | Φ140xΦ35x50 | Φ140xΦ35x50 | Φ140xΦ35x50 |
Dust hole size mm | Φ140 | Φ140 | Φ140 |
Dimensions mm | 4100x1650x1700 | 3700x1780x1750 | 3270x1780x1750 |
Machine net weight Kg | 4400 | 3900 | 3650 |
