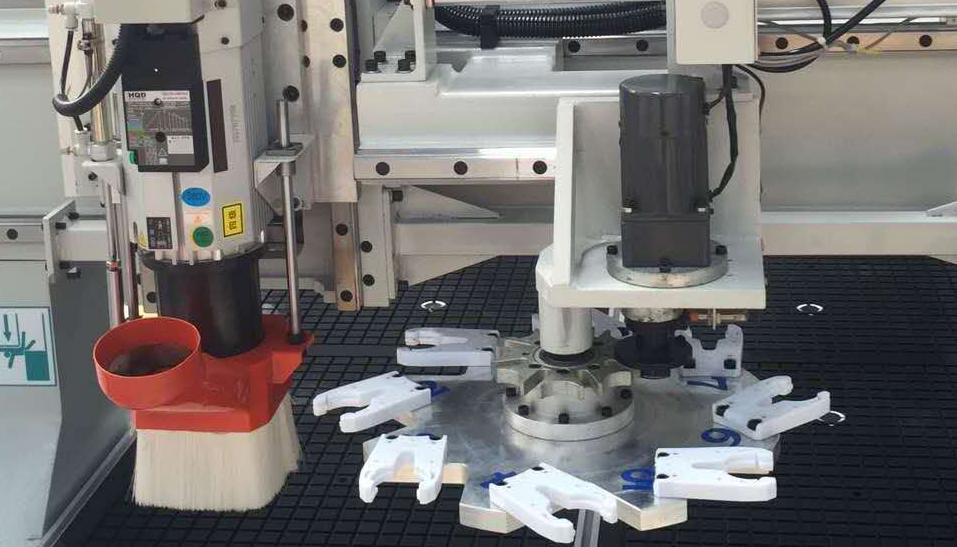

MODEL :CNC30-1325-R8 It is automatic tools changer CNC router with Carousel 10 positions. It is designed for high requirement of efficiency and stability.
Model | CNC30-1325-R8 |
Automatic tools changer | Round style/10 position include 8 pcs tool holders |
X-Y-Z axis working stroke | 1300X2500X300mm |
Table size | 1300mmX2500mm |
Working height | 200mm |
Machine size (LXWXH=) | 3600X2100X2100mm |
Working table Material | PVC &Aluminum |
Working table design | Vacuum groove and T slot Clamp |
Reposition accuracy | 0.0025mm |
Resolution | 0.005mm |
Linear rail Guide | Linear ￠30 square/YINTAI/Taiwan |
X-Y movement | Rack and Pinion/1.25M/Taiwan |
X-Y drive reducer | Seamless reducer box |
Z movement | Ball screw drive/25mm/German |
Z speed reduce | Z axis directly drive by motor |
Max. Speed | 55,000mm/min |
Max. cutting speed | 35,000mm/min |
Spindle | 9KW/HQD/CHINA/ Air cooling/ATC -Gantry protect cover |
Spindle speed | 24,000rpm |
Inverter power | 11kw/Fulling/China |
Boring group | / |
Drive motors | Servo motor/TAIWAN /TAIDA |
Command code | G code,HPLG |
Computer interface | USB 2.2 |
Shank | ISO30-ER32 *8pcs |
Collet | ER32-16mm,12.7mm,6mm X12pcs |
Software | AlphaCam 2016 copy version |
Controls | SYNTEC/6MA/TAIWAN |
Packing dimensions | 3700*2200*2000 mm, N.W.=2700 KG / G.W.=2900KG |
Working voltage | AC380V/50-60Hz, 3-phase |
Equipment include | a. Separately Electric cabinet with fans with computer |
b. Automatic Oil lubrication linear rail system | |
c. Clamps and Vacuum tools | |
d. Vacuum pump/FENRZ /7.5KW/320M3/H | |
e. Dust collector system/D=150mm | |
