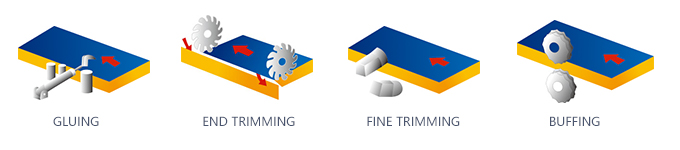

Function: Gluing; End Trimming; Fine Trimming;
Buffing

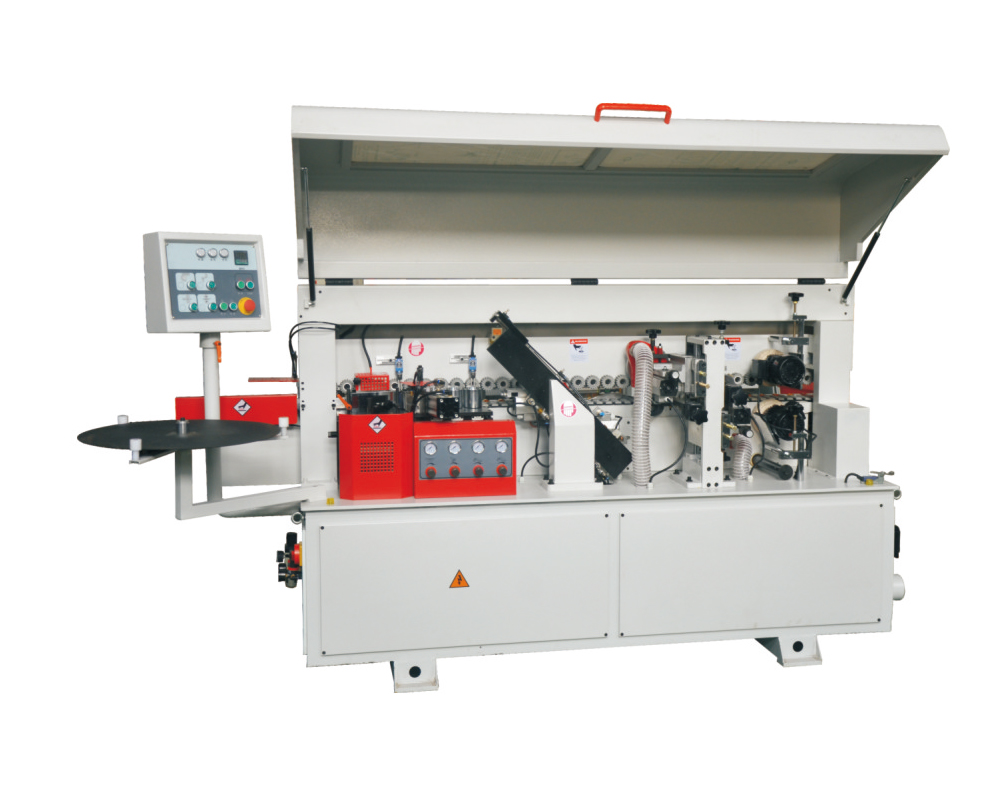

Model | CLASSIC331H | |
Min.panel length | mm | 120 |
Min.panel width | mm | 120 |
Panel thickness | mm | 12~55 |
Edge width | mm | 15~58 |
Edge thickness | mm | 0.4~3 |
Feeding speed | m/min | 10 |
Power motor | kw | 4.8 |
Air pressure | mpa | 0.6 |
Net weight | kg | 920 |
Overall dimensions | mm | 2750*800*1500 |
