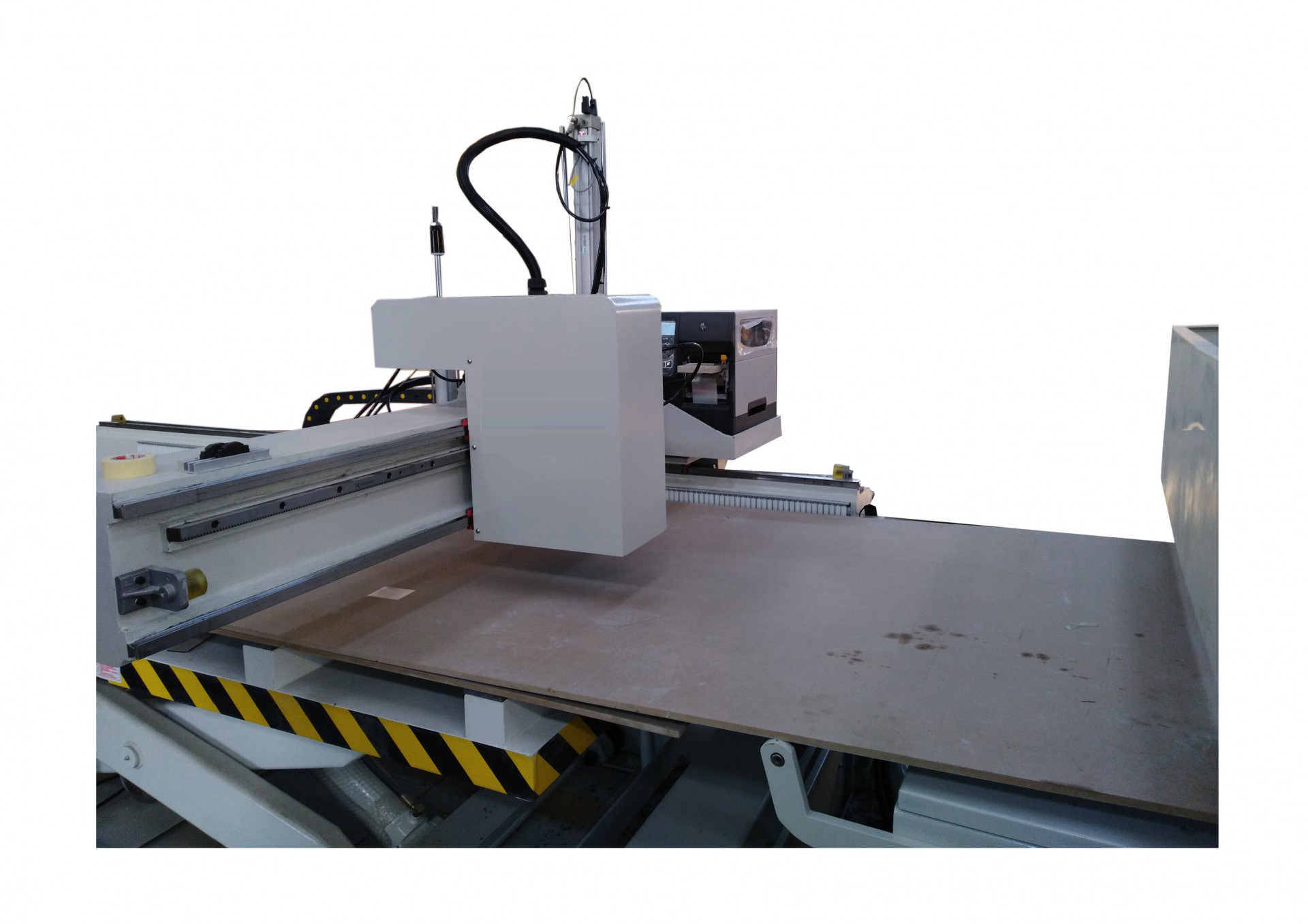

MODEL :CNC30-1224-AB Automatic labelling machine
CNC30-1224-AB is a machine has automatic labelling function, and match with scanning bar, which makes the high efficiency and accurate work, reduce the mistake rate management for bigger factory .
When the CNC machine is doing cutting and drilling work, at the same time ,the label section moves fast to recognize the board and put the right label on the board, and will make the panel labelled at right position ,ready for loading. The workers only need to unload the finished board, which is the popular machine for bigger factory, can match with ERP management, so saves much labor cost and reduce the mistake.
Model | CNC30-1224-AB |
Travelling size | 1350*2550*200mm |
Max Working size | 2540*1320*100mm |
Table size | 1250*2450mm (Compact board) |
Loading and Unloading Speed | 15000mm/min (can adjustable) |
Transmission | X/Y rack and pinion drive, Z/W ball screw drive |
Table structure | Vacuum |
Spindle power | 12.0 KW-HSK-F63 |
Spindle speed | 24000r/min |
Travelling speed | 80m/min |
Working speed | 25m/min |
Tool magazine | Carousel |
Tool slots | 8 (or 10 12 16 is optional) |
Driving system | Yaskawa/1.3KW |
Voltage | AC380/3PH/50HZ |
Controller | SYNTEC/OSAI/NC-STUDIO |
Boring head | 9V (or 9V6H1S style) |
Net weight | 3500KGS |
