MODEL : CNC30-1330-AB
Automatic loading & Unloading/ Automatic tool changer / 9V drilling head / cnc router / Wood working center

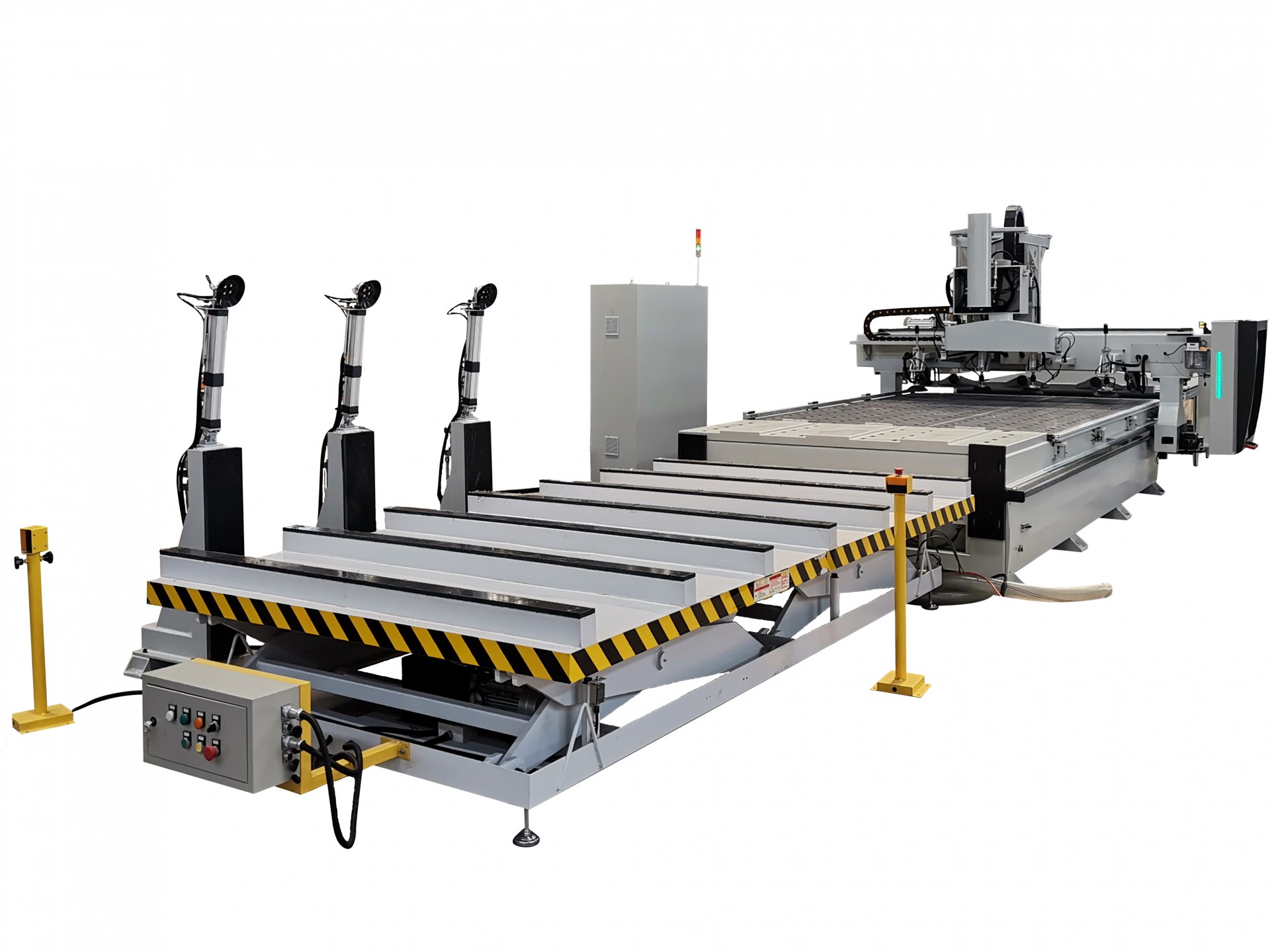

CNC30-1330-AB is an automatic loading and unloading nesting machine. This machine also has following functions: automatic tool changer(optional), drill vertical holes and saw blade slot. It improves the efficiency of production through fast moving and precise positioning, at the same time, save labor cost and material cost. This nesting machine is suitable for customized and panel furniture, especially for large amounts production.
Applicable Industry: Panel furniture, solid wood furniture, office furniture, customized cabinet, closet and so on.
■ Suitable for processing large amounts and various work, such as cutting , engraving, milling , and can match with bar code.
■ Fit a sheet of plate adsorption processes, and interact about vacuum three - region - for-processing
■ Match the automatic loading and unloading equipment , can be processed in high speed cutting
■ Suitable for solid wood furniture industry, electronic industry, advertising CNC industries, such as, processing wooden furniture, Engineering plastic, plexiglass and so on non-metallic materials
Model | CNC30-1330-AB Boring (5+4V) |
Travelling size | 3850*1600*300mm |
Max Working size | 3500*1350*200mm |
Table size | 3050*1250mm |
Loading and Unloading Speed | 8m/min |
Transmission | X/Y axis rack and pinion drive, Z axis ball screw drive |
Table structure | Vacuum |
Spindle power | 9.0 KW-ISO30 |
Spindle speed | 24000r/min |
Travelling speed | 80m/min |
Working speed | 25m/min |
Tool magazine | Carousel |
Tool slots | 8 |
Driving system | Yaskawa |
Voltage | AC380/3PH/50HZ |
Controller | Italian TPA controller |
Boring head | L shape 5+4 V (Optional 9V6H1S/ 7V4H/ 12V8H2S) |
Net weight | 5500KGS |
Model | VP30-1330-3A |
Travelling size | 3070*1420*300mm |
Max Working size | 3050*1320*200mm |
Table size | 1355mmX112mmX6PCs |
Loading and Unloading Speed | / |
Transmission | X/Y Rack and Pinion drive, Z ball screw drive |
Table structure | P.T.P. *6PC |
Spindle power | 6KW air cooling |
Spindle speed | 18000r/min |
Travelling speed | 80m/min |
Working speed | 35m/min |
Tool magazine | / |
Tool slots | / |
Driving system | Servo motor/YASKAWA/850W |
Voltage | AC380/3PH/50HZ |
Controller | SYNTEC |
Boring head | 9 (5+4L) |
Net weight | 3000KGS |
Middle spindle function | Turn 0°-45°-90°-135°-180°/milling for lock and hinge |
Model | VA25-1325F-L8 |
Travailing size | 2550*1500*450mm |
Max Working size | 2550*1400*300mm |
Table size | 2500X1300mm |
Loading and Unloading Speed | /optional |
Transmission | X/Y Rack and pinion/Z ball screw drive |
Table structure | Vacuum table and T-Slot |
Spindle power | 4.5KW air cooling |
Spindle speed | 24000r/min |
Travelling speed | 40m/min (if Servo, 50m/min) |
Working speed | 15m/min (if Servo, 25m/min) |
Tool magazine | / |
Tool slots | / |
Driving system | Servo System/ YASKAWA |
Voltage | AC380/3PH/50HZ |
Controller | SYNTEC |
Boring head | / |
Net weight | 1800KGS |
Automatic tools changer | / |
B Axis | Harmonic reducer |
