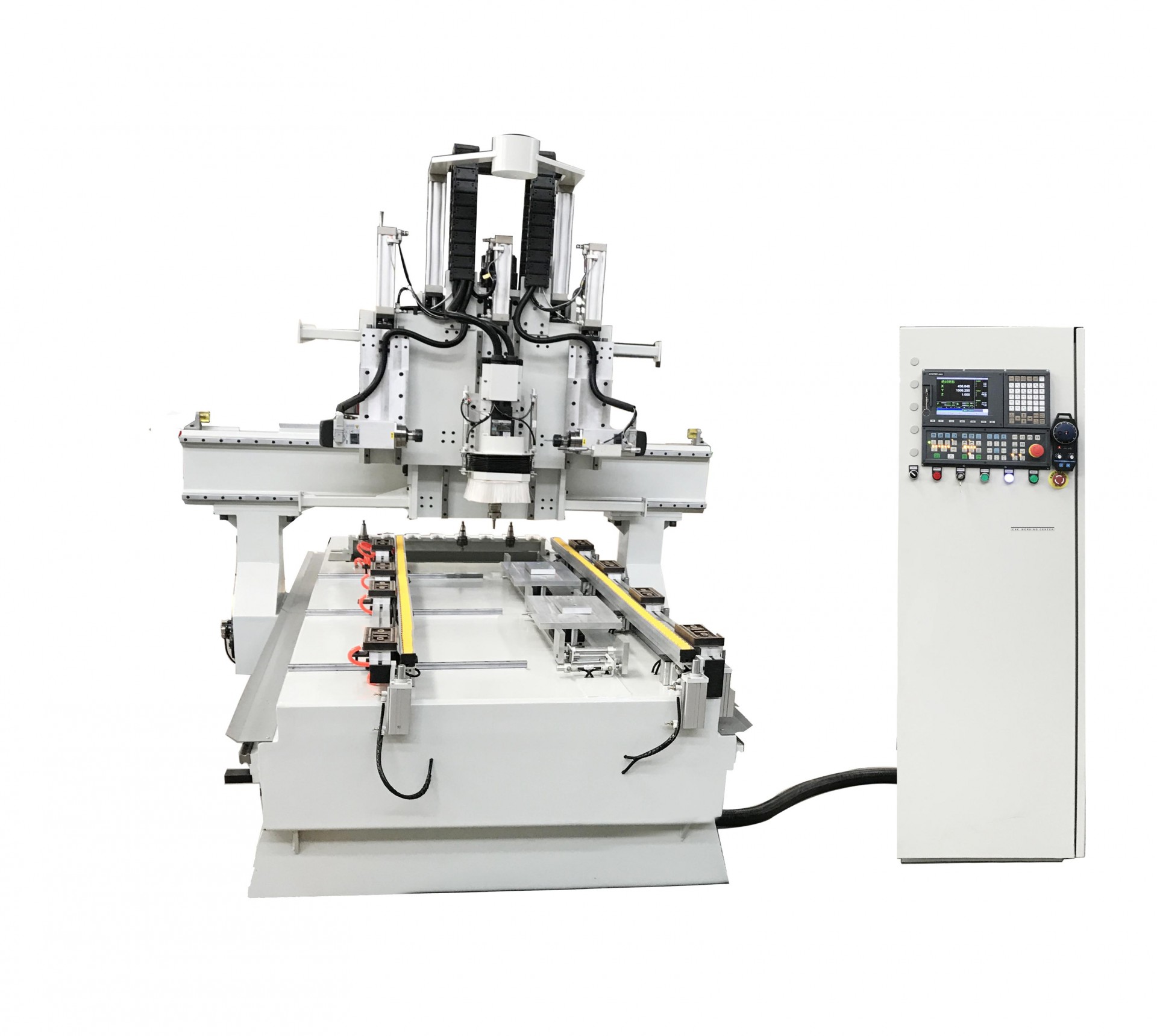

MODEL :CNC25-1331-D Series is an professional Door and Frame Automatic tools changer CNC , which is designed for high requirement and high accuracy
It is an automatic tools changer machine with linear style 8 tools, 2 side deputy spindle for work Hinge and lock!.
This CNC router is also equipped with Japan servo motor and reducer, Schneider/ APT /Omron electronic components, HSD spindle can be optional.
This machine is professional for working on all kinds of size door and frame, automatic working ,can working lock and hinge at one time, so high precision, easy loading and unloading.
Model | CNC25-1331-D |
Travelling size | 3450*1500*260mm |
Max Working size | 2050*1050*200mm |
Table size | 1100X2100mm |
Loading and Unloading Speed | / |
Transmission | X/Y axis Rack and Pinion drive, Z axis ball screw drive |
Table structure | Vacuum table |
Spindle power | 9KW /air cooling/ATC-ISO30 |
Spindle speed | 24000r/min |
Travelling speed | 80m/min |
Working speed | 25m/min |
Tool magazine | Linear |
Tool slots | 8 |
Driving system | Servo motor/YASKAWA/750W |
Voltage | AC380/3PH/50HZ |
Controller | TPA CN2008 |
Boring head | 5+4 V ( optional: 9V6H1S) |
Net weight | 2500KGS |
Automatic tools changer | Available/8 PCs |
