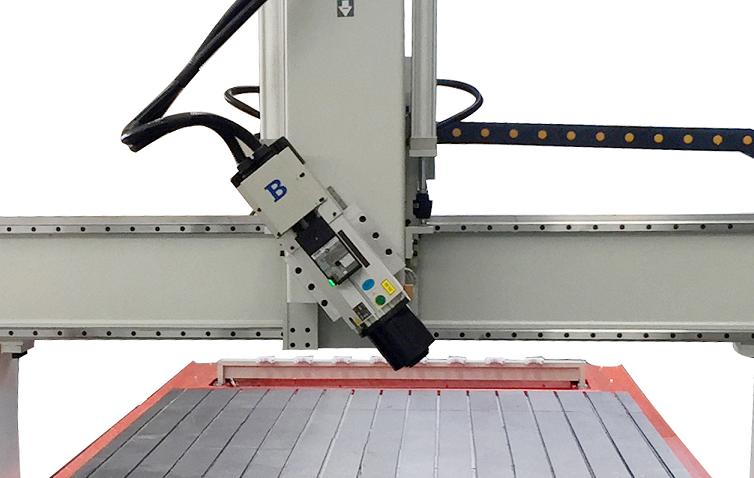

MODEL :CNC25-1325-A is a 4 axis CNC control system machine, adopt Taiwan SYNTEC controller， Mechanical drive adopt Japanese SHIMPO planetary reducer motor, fast speed, high precision, easy maintance. can work for curve board and cylinder. Cast steel structure makes our routers more stable.
This machine is equipped with Taiwan linear guide, German screw ball, high speed rotate air cooling spindle, high precision bearing which has low noise and longer life.
Model | CNC25-1325-A |
Travailing size | 2550*1500*450mm |
Max Working size XYZA= | 1500*2550*350mm, A=360° |
Table size | 1300X2550mm |
Loading and Unloading Speed | / |
Transmission | X/Y Rack and pinion/Z ball screw drive |
Table structure | Vacuum table and T-Slot |
Spindle power | 9KW /ATC/ ISO30 /Air cooling/China |
Spindle speed | 24000r/min |
Travelling speed | 55m/min |
Working speed | 15m/min (if Servo, 25m/min) |
Tool magazine | Linear style/ 8 position / |
Tool slots | / |
Driving system | Servo System/ YASKAWA |
Voltage | AC380/3PH/50HZ |
Controller | SYNTEC |
Boring head | / |
Net weight | 1800KGS |
Automatic tools changer | Automatic tools change at back side of machine |
A Axis reducer | Harmonic reducer |
XYZ Axis reducer | Japanese SHIMPO planetary reducer motor |
