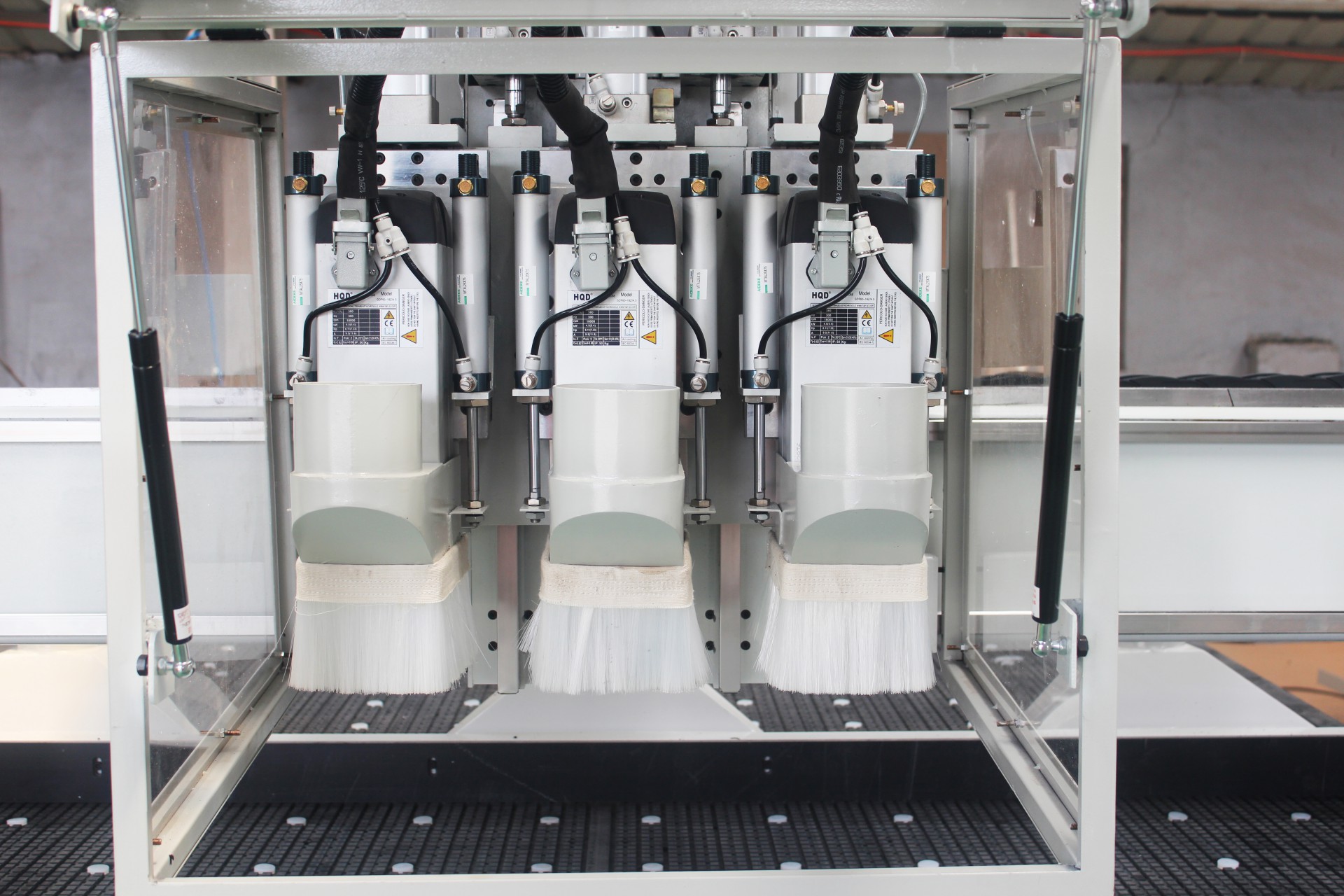

MODEL:CNC25-1325-3A is a Economic model Nesting machine, with three head , like 3 tools automatic changing , Match3 and Demo software, can complete big board cutting, boring, engraving, milling work and so on.
It is an special machine for custom-made panel furniture, replaced traditional sliding table saw, can finish vertical bore holes and cut wood panel at the same time.
Model | CNC25-2030-3A |
Travailing size | 3050*2000*200mm |
Max Working size | 2550*1320*200mm |
Table size | 1300X2500mm |
Loading and Unloading Speed | / (is optional) |
Transmission | X/Y axis Rack and pinion/ Z axis ball screw drive |
Table structure | Vacuum working table |
Spindle power | 4.5KW air cooling/ItalianX3PCs (6KW is optional) |
Spindle speed | 18000r/min |
Travelling speed | 45m/min (if Servo, 50m/min) |
Working speed | 15m/min (if Servo, 25m/min) |
Tool magazine | / |
Tool slots | / |
Driving system | Stepper motor/YAKO (servo motor is optional) |
Voltage | AC380/3PH/50HZ |
Controller | Mach3 controller with PC (Taiwan SynteK is optional) |
Boring head | / |
Net weight | 2200KGS |
Automatic tools changer | /(but like automatic tools changer 2 times) |
Boring group | /optional |
